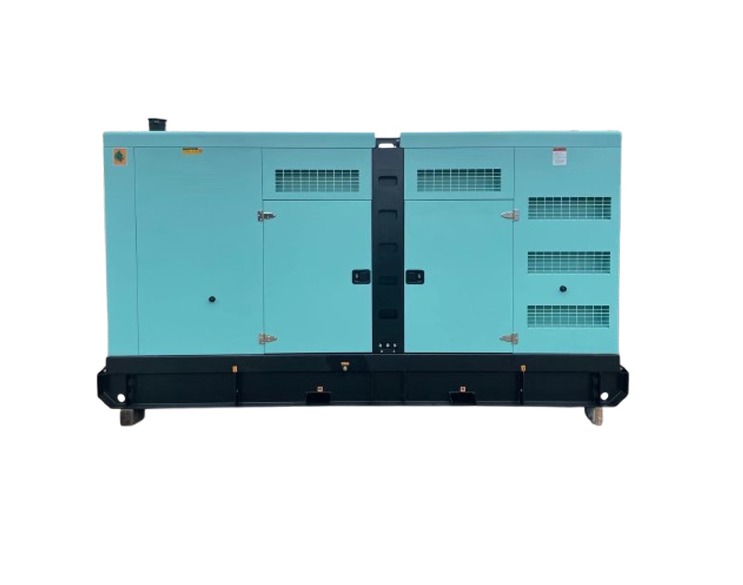

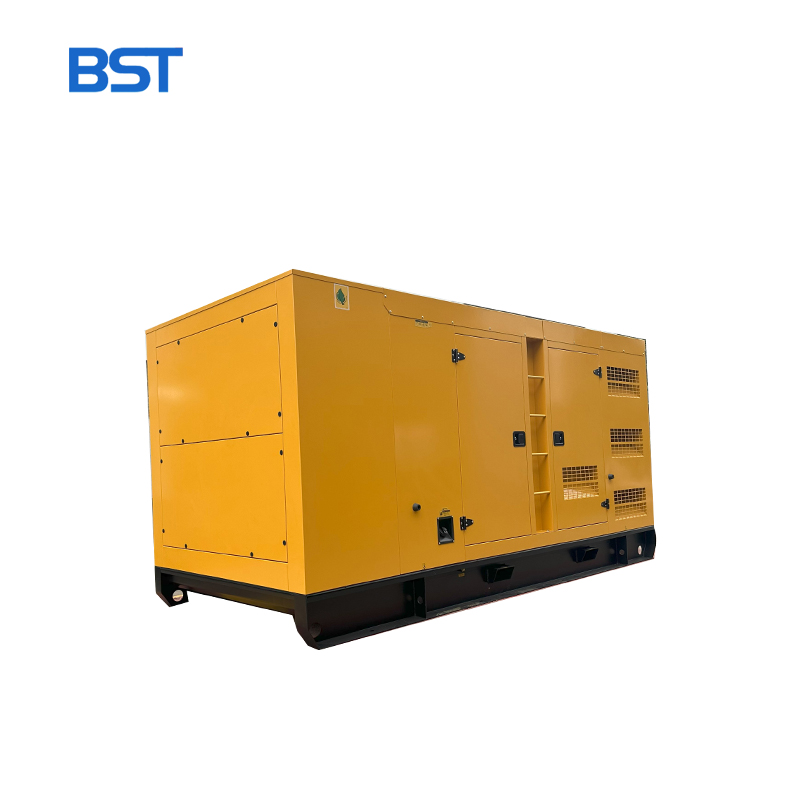

Ultra Silent 100kw 200kw Cummins Yuchai Engine Diesel Generator for Commercial Use

1. Special Silent Design
Good acoustic effect:
Excluding external noise, 7 meters outside the power station is
about 75 decibels.
Corrosion protection:Cold-rolled steel body with Zinc phosphate and polyester powder coating for a long-lasting new look;
Convenient transportation:
Skeleton structure, modular design;
High-strength soundproof box chassis;
Lifting lugs are set on the top of the soundproof box;
Customization Services
Parameters
Genset Parameters | ||||||||
Genset Model | Prime Power | Standby Power | Prime Current (A) | Standby Current (A) | Net Weight (KG) | Overall Dimensions L*W*H (m) | ||
KW | KVA | KW | KVA | |||||
BST-120GF | 120 | 150 | 132 | 165 | 216 | 237.6 | 1602 | 2.5*1.12*1.47 |
BST-160GF | 160 | 200 | 176 | 220 | 288 | 316.8 | 1695 | 2.8*0.9*1.69 |
BST-200GF | 200 | 250 | 220 | 275 | 360 | 396 | 1895 | 2.87*0.9*1.69 |
BST-280GF | 280 | 350 | 320 | 400 | 504 | 576 | 2775 | 3.4*1.13*2.02 |
BST-320GF | 320 | 400 | 360 | 450 | 576 | 648 | 2925 | 3.4*1.13*2.06 |
BST-364GF | 364 | 455 | 400 | 500 | 655.2 | 720 | 3450 | 3.76*1.13*2.06 |
BST-400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3570 | 3.76*1.13*2.06 |
BST-480GF | 480 | 600 | 528 | 660 | 864 | 950.4 | 3975 | 3.76*1.54*2.13 |
BST-520GF | 520 | 650 | 560 | 700 | 936 | 1008 | 4075 | 3.76*1.54*2.13 |
Q1: What about the warranty?
A: 12-month/1,000-hour warranty (whichever comes first). Covers parts, labor, and tech support for factory defects. Excludes damage from misuse (wrong fuel, overload) or unauthorized changes.

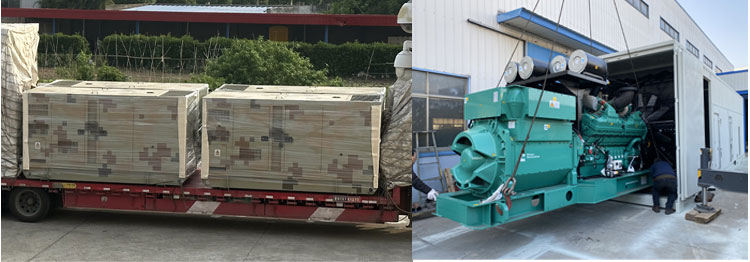

Q2: How to pack the diesel generator?
A: Our export packaging adapts to diesel generator requirements. For silent generator units, we use 0.8mm weatherproof PVC film wrapping with steel frames (IP55 certified) and EPE foam buffers.
Q3: How much fuel can I save compared to older generator models?
A: With our Smart ECO Mode, fuel consumption drops by 22% versus conventional models at partial loads.
Q4: Is the noise level low enough for residential areas?
A: With 3-layer acoustic enclosures, noise is reduced to 75 dB(A) at 7 meters.
Q5: Do you conduct 100% testing before shipping?
A: Yes, every generator undergoes 100% quality validation testing prior to shipment, and we provide the corresponding test video for your review.
